- Place of Origin: Shandong
- Brand Name: shanyicnc
- Model Number: FLCX4500-00
- Weight: 7000.000 kg

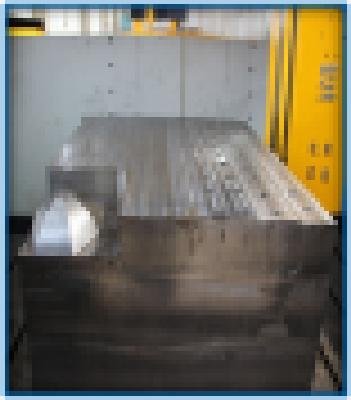

Products Information
The machine is a precision machine tool with an integration of machinery, electricity, hydraulic pressure, and numerical control. The structure of the whole machine is equipped with boring and milling rotary table, On the gantry is equipped with two elevator servo spindle, can be able to feed around, servo spindle are equipped with NC head, can achieve vertical and horizontal transformation, CNC turning and milling rotary table that is vertical car turntable and also is Precise arbitrary degree of servo turntable, can processing flat surface, curved surface, and hole. Milling, boring, drilling and tapping all these processes can be made in one clamping and improves production efficiency and machining quality.
FLCX4500-00 CNC boring and milling machine adopts NC system centralized control, AC servo drive system, high precision gear and rack drive system and roller linear guide rail. It can realize the precision movement of the machine to ensure the processing precision and efficiency.
Main Technical Parameters of The Machine Tool
(1) Main technical parameters
Item | Unit | Specs | |||
Table diameter | mm | 4500 | |||
Workpiece hole center distance range | mm | 1500-4500 | |||
Max processing hole diameter | mm | 60 a borehole 100 reaming | |||
Max rigidity tapping threads | mm | M36 (thread milling M10 above) | |||
Distance from Horizontal Spindle center to tooling ends | Max | mm | 1200 | ||
Min | mm | 0 | |||
Travel | Longitude(X) | mm | 2200 | ||
Lateral(Y) | mm | 4000 400 | |||
Vertical(Z) | mm | 1200 | |||
Spindle Number | BT50 | ||||
Spindle Rotation Speeds | r/min | 10-3500 | |||
Rotary table speeds | r/min | 1-55 | |||
Worktable gyration C | ° | 0.001/360 | |||
Worktable gyration C Torque | Nm | 13000 | |||
Spindle power | kw | 40 | |||
Spindle torque | Nm | 1200 | |||
In feeding speeds | Longitude(X) | mm/min | 10-6000 | ||
Lateral(Y) | mm/min | 10-5000 | |||
Vertical(Z) | mm/min | 10-5000 | |||
Fast In feeding speed | Longitude(X) | mm/min | 8000 | ||
Lateral(Y) | mm/min | 6000 | |||
Vertical(Z) | mm/min | 6000 | |||
Infeeding Servo Power | Longitude(X) | Nm | 28.4X2 | ||
Lateral(Y) | Nm | 18.6 | |||
Vertical(Z) | Nm | 28.4 | |||
Rotary table C | Nm | 28.4 | |||
Positioning Accuracy | mm | 0.01/1000 | |||
Rotary table positioning accuracy C (random) | ″ | ±10 | |||
Rotary table positioning accuracy C(4*90°) | ″ | ±8 | |||
Re-positioning Accuracy | mm | 0.01 | |||
Rotary table re-positioning accuracy C (random) | ″ | 12 | |||
Rotary table re-positioning accuracy C(4*90°) | ″ | 10 | |||
Max Worktable Weight | T | 20 | |||
(2) Machine Straightness
X-axis:≤0.01/1000
Y-axis:≤0.01/1350
Z-axis:≤0.01/1000
