- Place of Origin: jinan
- Brand Name: shanyi
- Model Number: XQWM-2020
- Weight: 80000.000 kg

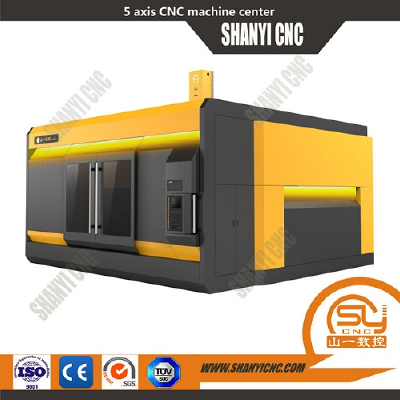

5 Axis CNC Vertical Machine Center Processing Video:
YOUTUBE: youtu.be/u-8cf-_-iEA
Product Application
This machine is widely used in the automobiles, motorcycles, printing machinery, textile machinery, vehicles and other machinery maThis machine is widely used in the automobiles, motorcycles, printing machinery, textile machinery, vehicles and other machinery manufacturing industry for the parts processing. shanyi cnc 5-axis machines are designed for machining hard metals such as stainless steels and titanium for the aerospace industry and other complex applications. nufacturing industry for the parts processing. shanyi cnc 5-axis machines are designed for machining hard metals such as stainless steels and titanium for the aerospace industry and other complex applications.
Item | unit | Specs | ||
Precision | High Precision | |||
Rotary Table Size (WXL) | mm2 | 2000×2000 | ||
Pass Width | mm | 3000 | ||
T-SLOT | T-slot width | mm | 22 | |
T-slot pitch | mm | 237 | ||
Spindle to Table Distance | mm | 30-1330 | ||
Travel | Longitude（X） | mm | 2300 | |
Lateral（Y） | mm | 2500 | ||
Vertical（Z） | mm | 1300 | ||
Head（A） | ° | ±95 | ||
Rotary Table（C） | ° | Random | ||
Spindle Number | BT50 | |||
Spindle Rotation Speeds | r/min | 10-4000 | ||
Spindle Torque | Nm | 500 | ||
Head Torque | Nm | 4300 | ||
Rotary Table Torque | Nm | 20000 | ||
In feeding speeds
| Longitude（X） | mm/min | 10-8000 | |
Lateral（Y） | mm/min | 10-8000 | ||
Vertical（Z） | mm/min | 10-4000 | ||
head（A） | r/min | 5 | ||
rotary table（C） | r/min | 4 | ||
Fast In feeding speed | Longitude（X） | mm/min | 12000 | |
Lateral（Y） | mm/min | 12000 | ||
Vertical（Z） | mm/min | 6000 | ||
head（A） | mm/min | 8 | ||
rotary table（C） | r/min | 7 | ||
Spindle servo Power | Kw | 46 | ||
In feeding Servo Power | Longitude（X） | Nm | 28.4X4 | |
Lateral（Y） | Nm | 18.6X2 | ||
Vertical（Z） | Nm | 28.4 | ||
head（A） | Nm | 3.5X2 | ||
rotary table（C） | Nm | 28.4X2 | ||
Linear Positioning Accuracy | mm | 0.02/1000 | 0.01/1000 | |
Linear Re-positioning Accuracy | mm | 0.02 | 0.01 | |
Rotation Positioning Accuracy | ″ | ±4 | ±3 | |
Rotation Re-positioning Accuracy | ″ | 3 | 2 | |
Max Worktable Weight | T | 16 | ||
