- Place of Origin: Shandong
- Brand Name: shanyicnc
- Model Number: CK4000
- Weight: 7000.000 kg

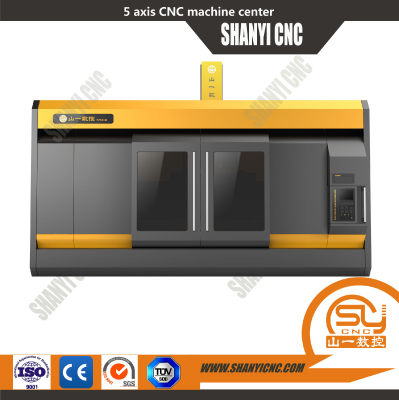

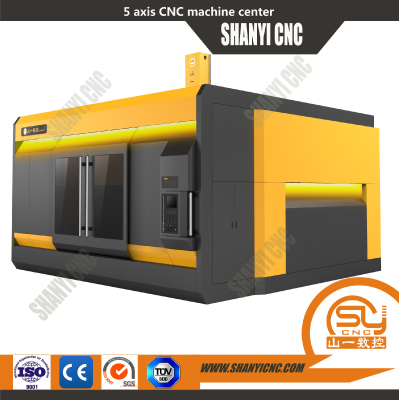

CK4000 CNC Vertical Lathe
Products Information
CNC lathe is a precision machine with an integration of machinery, electricity, hydraulic pressure, and numerical control, the structure features are that double column, liftable beam. Equipped with servo drive, gear and rack drive and linear roller guide rail. It can realize the precise operation of the machine, thus reduces the worker labor intensity.
Main Technical Parameters of The Machine Tool
Item | Unit | Specs | |
Worktable Size (WXL) | mm | Φ4000 | |
Max Machining Diameter | mm | Φ4000 | |
Spindle to table distance | Max | mm | 2500 |
Min | mm | 100 | |
Travel | Lateral(Y) | mm | 2050 |
Vertical(Z) | mm | 1100 | |
Vertical(W) | mm | 1800 | |
Worktable Torque | Nm | 24000 | |
In feeding speed | Rotation (C) | r/min | 0-40 |
Lateral (Y) | mm/min | 10-8000 | |
Vertical (Z) | mm/min | 10-3000 | |
Vertical (W) | mm/min | 10-3000 | |
Fast In feeding speed | Rotation (C) | r/min | 0-50 |
Lateral (Y) | mm/min | 10000 | |
Vertical (Z) | mm/min | 4000 | |
Vertical (W) | mm/min | 4000 | |
Servo feed motor | Rotation (C) | Kw | 30 |
Lateral (Y) | Nm | 20 | |
Vertical (Z) | Nm | 20 | |
Vertical (W) | Nm | 20 | |
Positioning Accuracy | mm | 0.01/1000 | |
Re-positioning Accuracy | mm | 0.01 | |
Max Worktable Weight | T | 20 |
