- Place of Origin: jinan
- Brand Name: shanyi
- Model Number: XK2906/3
Products Information

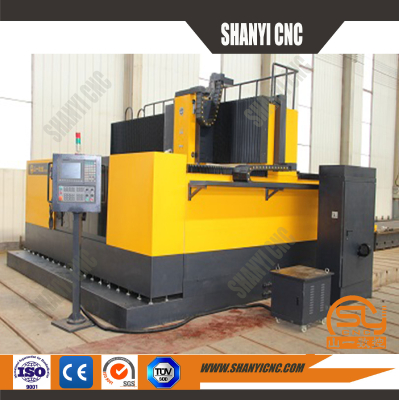

Bridge Type CNC Gantry Milling Machine is a precision machine tool with an integration of machinery, electricity, hydraulic pressure, and numerical control. The structural features are that a fixed beam, fixed worktable, movable gantry boring and milling machine, can processing flat surface, curved surface, and hole. Milling, boring, drilling and tapping all these processes can be made in one clamping and improves production efficiency and machining quality.
XK2906/3 bridge type milling machine adopts NC system centralized control, AC servo drive system, gear and rack drive system and roller linear guide rail. It can realize the precision movement of the machine and reduces the worker labor intensity.
Main Technical Parameters of The Machine Tool
(1) Main technical parameters
Unit | Specs | |||
Worktable Size (W×L) | mm2 | 600×3000 | ||
Pass Width | mm | 1000 | ||
T-SLOT | T-slot width | mm | 28 | |
T-slot torque | mm | 200 | ||
Spindle to table distance | Max | mm | 1000 | |
Min | mm | 170 | ||
Travel | Longitude(X) | mm | 3000 | |
Lateral(Y) | mm | 1500 | ||
Vertical(Z) | mm | 830 | ||
Spindle Number | BT50 | |||
Spindle Rotation Speed | r/min | 3000 | ||
Spindle Torque | Nm | 180 | ||
In feeding speeds | Longitude(X) | mm/min | 10-4000 | |
Lateral(Y) | mm/min | 10-3000 | ||
Vertical(Z) | mm/min | 10-2000 | ||
Fast In feeding speed | Longitude(X) | mm/min | 6000 | |
Lateral(Y) | mm/min | 4000 | ||
Vertical(Z) | mm/min | 3000 | ||
Spindle servo Power | Kw | 30 | ||
Servo Feed Motor | Longitude(X) | Nm | 18.6 | |
Lateral(Y) | Nm | 18.6 | ||
Vertical(Z) | Nm | 18.6 | ||
Positioning Accuracy | mm | 0.02/1000 | ||
Re-positioning Accuracy | mm | 0.02 | ||
Max Worktable Weight | T | 14 | ||
The Structural Features of Machine Tool
(1) X-axis: beam along the fixed bed, guide horizontal motion.
X-axis Transmission system adopts ac servomotor, after the gear reducer reduce speed, drive the gear rotation. It can realize the X-axis linear movement accurately.
(2) Y-axis: milling heads slide over beam, the guide rail horizontal motion.
Y-axis Transmission system adopts ac servomotor, after the gear reducer reduce speed, drive the gear rotation, It can realize the Y-axis linear movement accurately
(3) Z-axis: milling ram over slide, the guide rail moves up and down.
Z-axis Transmission system adopts ac servomotor, after the gear reducer reduce speed, drive the gear rotation. It can realize the Z-axis linear movement accurately.
The Main Configuration of The Machine Tool
(1) NC system adopts SYNTEC EZ-4 CNC system
(2) X, Y, Z guide rail adopts precision linear roller guide rail to ensure the machine used precision and useful life.
(3) X, Y, Z way all adopts transmission of ball screw
(4) In the three-transmission system, adopts NC software limitation, electrical limitation and many control system to make sure a safe work environment.
(5)Lathe bed materials:worktable adopts HT250 cast iron and 16Mn steel plate welded together, artificial aging treatment and stress relieving after welding,( 580℃ of the annealing temperature); base and beam adopts 16Mn steel plate-welded, Stress relieving after welding (580℃ of the annealing temperature).
(6) All gear for machine tool adopts hard tooth surface nitriding treatment, high hardness, wear resistance.
The Basic Configuration of the Machine Tool
(1) Lubrication system: adopts automatic lubrication system, send oil in fixed quantity and fixed time in three direction.
(2) Cutter can realize hydraulic loading and unloading, it has improved on the efficiency of the manufacture.
(3) The machine toot is equipped with central water discharge device, the cutter in the process of machining for cooling.
(4) The beam guide rail and rack adopted organ shield, lathe bed guide rail and rack adopted stainless steel shield.
(5) The beam is equipped with security fence to ensure the human safety.
(6) The machine tool is equipped with floodlight that convenient for night use.
