- Place of Origin: jinan
- Brand Name: shanyi
- Model Number: XQWM-2025
- Weight: 7000.000 kg
Application
This machine is used to the automobiles, motorcycles, printing machinery, textile machinery, vehicles and other machinery manufacturing industry for the parts processing.
Main Features
a. The layout is Reasonable and advanced, the appearance is beautiful. The lateral, longitudinal and vertical guide rail adopts large size roller linear guide rail, it has the peculiarities of high sensitivity. Transmission adopts precision gear and rack. Longitudinal, lateral and head adopts double motor to backlash; vertical adopts gravity backlash; longitudinal transmission and beam lifting all equipped with double drive, good synchronization, and the machine spindle is motorized spindle with central water cooling function. The complete machine is of good rigidity, high precision and high stability.

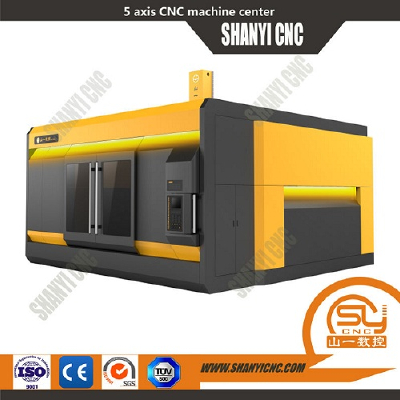

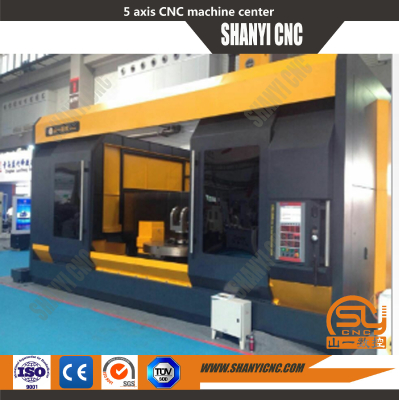

b. This machine is bridge type boring and milling machine with beam horizontal moving has the characteristics of occupies a small area and great bearing capacity. NC head around A axis. Can adjust at any Angle, NC rotary table around C axis can adjust at any angle. This machine With RTCP five-axis linkage function, Milling, boring, drilling, and tapping all these processes for the 5 sides of the workpiece can be made in one clamping.
c. The machine tool control system can configure SIEMENS system, FANUC system, SYNTEC system and AC servo motor.
d. CNC system adopts man machine conversation, so menu selection, background edits and programming function is powerful and easy to learn. Large memory capacities, perfect diagnostic function, display the alarm message, easy to maintenance. It has the pitch compensation and cutter compensation function.
e. According to customer requirements, CNC control system can configure any brand.
f. Cutter have automatic assemble and unassembled function.
g. The machine tool adopts automatic timing quantitative lubrication device.
Main Technical Parameters of The Machine Tool
(1) Main Technical Parameters
Item | unit | Specs | ||
Precision | High Precision | |||
Rotary Table Size (WXL) | mm2 | 2000×2000 | ||
Pass Width | mm | 3000 | ||
T-SLOT | T-slot width | mm | 22 | |
T-slot pitch | mm | 237 | ||
Spindle to Table Distance | mm | 30-1330 | ||
Travel | Longitude（X） | mm | 2300 | |
Lateral（Y） | mm | 2500 | ||
Vertical（Z） | mm | 1300 | ||
Head（A） | ° | ±95 | ||
Rotary Table（C） | ° | Random | ||
Spindle Number | BT50 | |||
Spindle Rotation Speeds | r/min | 10-4000 | ||
Spindle Torque | Nm | 500 | ||
Head Torque | Nm | 4300 | ||
Rotary Table Torque | Nm | 20000 | ||
In feeding speeds
| Longitude（X） | mm/min | 10-8000 | |
Lateral（Y） | mm/min | 10-8000 | ||
Vertical（Z） | mm/min | 10-4000 | ||
head（A） | r/min | 5 | ||
rotary table（C） | r/min | 4 | ||
Fast In feeding speed | Longitude（X） | mm/min | 12000 | |
Lateral（Y） | mm/min | 12000 | ||
Vertical（Z） | mm/min | 6000 | ||
head（A） | mm/min | 8 | ||
rotary table（C） | r/min | 7 | ||
Spindle servo Power | Kw | 46 | ||
In feeding Servo Power | Longitude（X） | Nm | 28.4X4 | |
Lateral（Y） | Nm | 18.6X2 | ||
Vertical（Z） | Nm | 28.4 | ||
head（A） | Nm | 3.5X2 | ||
rotary table（C） | Nm | 28.4X2 | ||
Linear Positioning Accuracy | mm | 0.02/1000 | 0.01/1000 | |
Linear Re-positioning Accuracy | mm | 0.02 | 0.01 | |
Rotation Positioning Accuracy | ″ | ±4 | ±3 | |
Rotation Re-positioning Accuracy | ″ | 3 | 2 | |
Max Worktable Weight | T | 16 | ||
- Place of Origin: jinan
- Brand Name: shanyi
- Model Number: XQWM-2025
- Weight: 7000.000 kg
Main Specification
Item | unit | Specs | ||
Precision | High Precision | |||
Rotary Table Size (WXL) | mm2 | 2000×2000 | ||
Pass Width | mm | 3000 | ||
T-SLOT | T-slot width | mm | 22 | |
T-slot pitch | mm | 237 | ||
Spindle to Table Distance | mm | 30-1330 | ||
Travel | Longitude（X） | mm | 2300 | |
Lateral（Y） | mm | 2500 | ||
Vertical（Z） | mm | 1300 | ||
Head（A） | ° | ±95 | ||
Rotary Table（C） | ° | Random | ||
Spindle Number | BT50 | |||
Spindle Rotation Speeds | r/min | 10-4000 | ||
Spindle Torque | Nm | 500 | ||
Head Torque | Nm | 4300 | ||
Rotary Table Torque | Nm | 20000 | ||
In feeding speeds
| Longitude（X） | mm/min | 10-8000 | |
Lateral（Y） | mm/min | 10-8000 | ||
Vertical（Z） | mm/min | 10-4000 | ||
head（A） | r/min | 5 | ||
rotary table（C） | r/min | 4 | ||
Fast In feeding speed | Longitude（X） | mm/min | 12000 | |
Lateral（Y） | mm/min | 12000 | ||
Vertical（Z） | mm/min | 6000 | ||
head（A） | mm/min | 8 | ||
rotary table（C） | r/min | 7 | ||
Spindle servo Power | Kw | 46 | ||
In feeding Servo Power | Longitude（X） | Nm | 28.4X4 | |
Lateral（Y） | Nm | 18.6X2 | ||
Vertical（Z） | Nm | 28.4 | ||
head（A） | Nm | 3.5X2 | ||
rotary table（C） | Nm | 28.4X2 | ||
Linear Positioning Accuracy | mm | 0.02/1000 | 0.01/1000 | |
Linear Re-positioning Accuracy | mm | 0.02 | 0.01 | |
Rotation Positioning Accuracy | ″ | ±4 | ±3 | |
Rotation Re-positioning Accuracy | ″ | 3 | 2 | |
Max Worktable Weight | T | 16 | ||
Application
This machine is used to the automobiles, motorcycles, printing machinery, textile machinery, vehicles and other machinery manufacturing industry for the parts processing.
Main Features
a. The layout is Reasonable and advanced, the appearance is beautiful. The lateral, longitudinal and vertical guide rail adopts large size roller linear guide rail, it has the peculiarities of high sensitivity. Transmission adopts precision gear and rack. Longitudinal, lateral and head adopts double motor to backlash; vertical adopts gravity backlash; longitudinal transmission and beam lifting all equipped with double drive, good synchronization, and the machine spindle is motorized spindle with central water cooling function. The complete machine is of good rigidity, high precision and high stability.
b. This machine is bridge type boring and milling machine with beam horizontal moving has the characteristics of occupies a small area and great bearing capacity. NC head around A axis. Can adjust at any Angle, NC rotary table around C axis can adjust at any angle. This machine With RTCP five-axis linkage function, Milling, boring, drilling, and tapping all these processes for the 5 sides of the workpiece can be made in one clamping.
c. The machine tool control system can configure SIEMENS system, FANUC system, SYNTEC system and AC servo motor.
d. CNC system adopts man machine conversation, so menu selection, background edits and programming function is powerful and easy to learn. Large memory capacities, perfect diagnostic function, display the alarm message, easy to maintenance. It has the pitch compensation and cutter compensation function.
e. According to customer requirements, CNC control system can configure any brand.
f. Cutter have automatic assemble and unassembled function.
g. The machine tool adopts automatic timing quantitative lubrication device.
